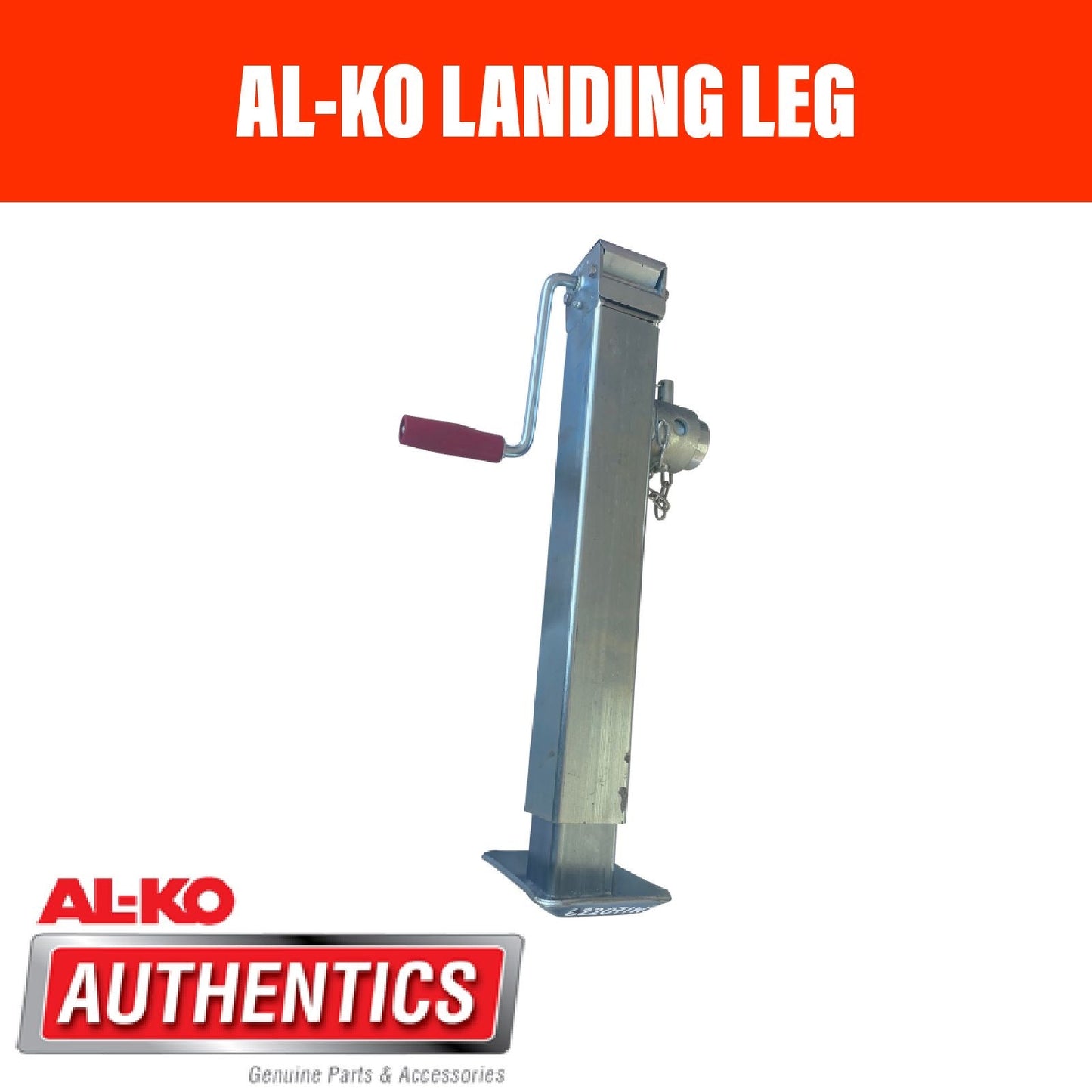

AL-KO 70mm Square Landing Leg
AL-KO 70mm Square Landing Leg
Share
LANDING LEGS
P/N: 622071WTM
The range of AL-KO Landing Legs are Ideal for stabilising plant trailers, camper trailers, 5th wheeler
caravans and agricultural equipment, the AL-KO Landing Leg is a necessary inclusion to the toolkit of the
commercial contractor, farmer and camping enthusiast alike. All bases are covered with the AL-KO range of
Landing Legs, with static loads ranging from 1,300 to 4,500kg.
The standard plant trailer right up to a fully loaded water tank is easily stabilised into position with the side
wind operation. Flexibility is a major feature of the AL-KO Landing Leg range. The customer can choose to
include or exclude tube mounting kits.-
The AL-KO Landing Leg is your ideal choice when looking to safely and efficiently stabilise your trailer,
camper, 5th wheeler caravan or agricultural machinery.
Description
Round landing leg short, comes with swivel
mount.
Specifications
Tube Profile: 57.5mm Round
Mount fitted: Yes
Capacity : 1,300 kg
Stroke length: 400 mm
Open Length: 900 mm
Closed Length: 550 mm
Finish: Zinc Plated
Weight: 6.7 kg
A 400 mm
B 150 mm
C 167 mm
D 118 mm
