AL-KO TRAILTECH 6 INCH Clamp On Jockey Wheel

Jockey Wheel - Trailtech - 6" Wheel - With Weld On Or Bolt On Clamp

Part Number: 626050BX

The range of Trailtech solid tyre jockey wheels are lighter duty than our premium range.

Jockey Wheel - Trailtech - 6" Wheel - With Weld On Or Bolt On Clamp

Specifications:

• Surface finish: Zinc Plated
• Static Capacity: 350kg
• Outer Tube Dia.: 48mm
• Weight: 5kg
• Wheel Dia.: 150mm
• Mount holes per side: 1
• Mounting Hole Dia.: 13mm
• Hole spacing: 150mm

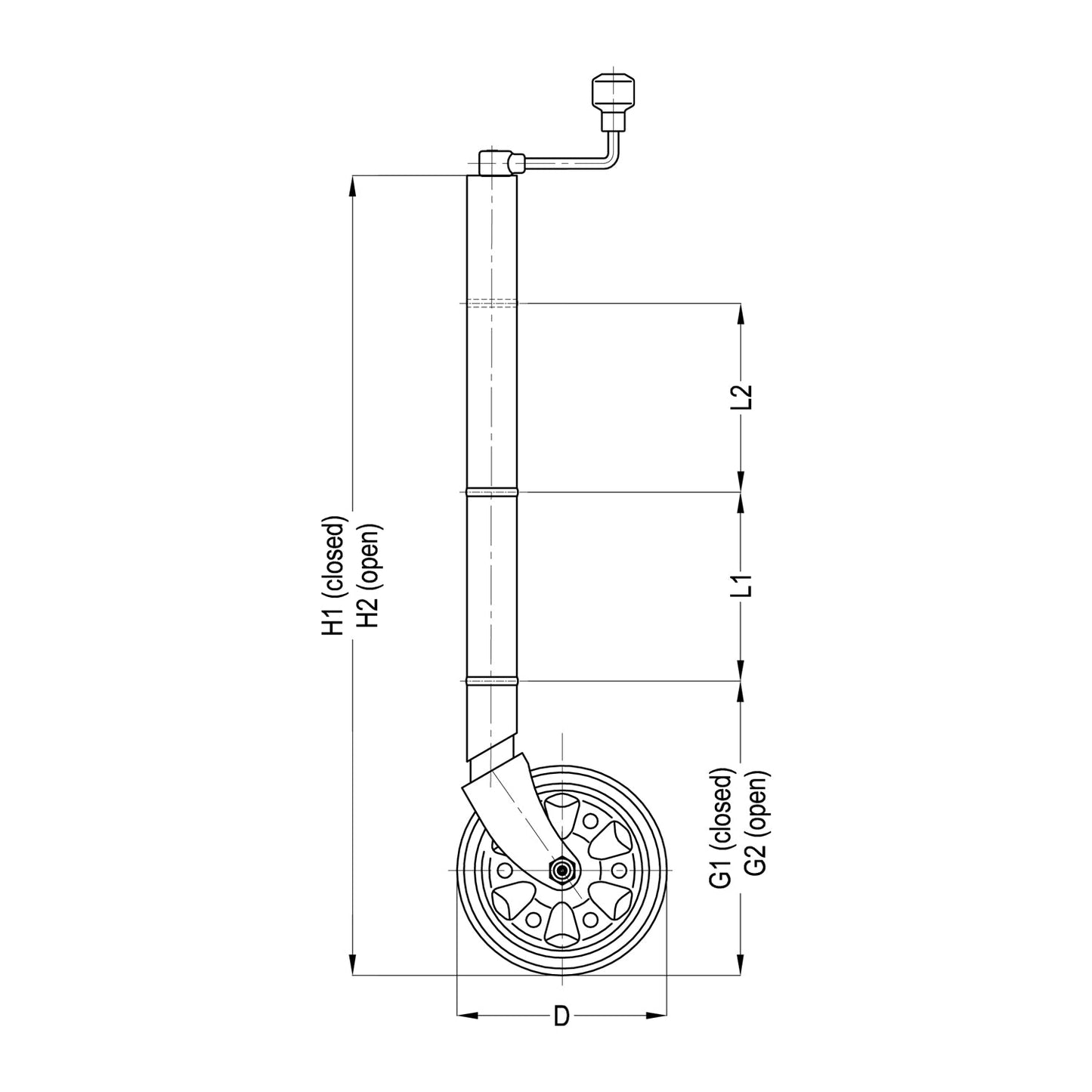

• Height Closed (H1):510mm
• Height Open (H2):760mm
• Bottom of wheel to bottom rib center when closed (G1): 202mm
• Bottom of wheel to bottob rib center when closed (G2): 457mm
