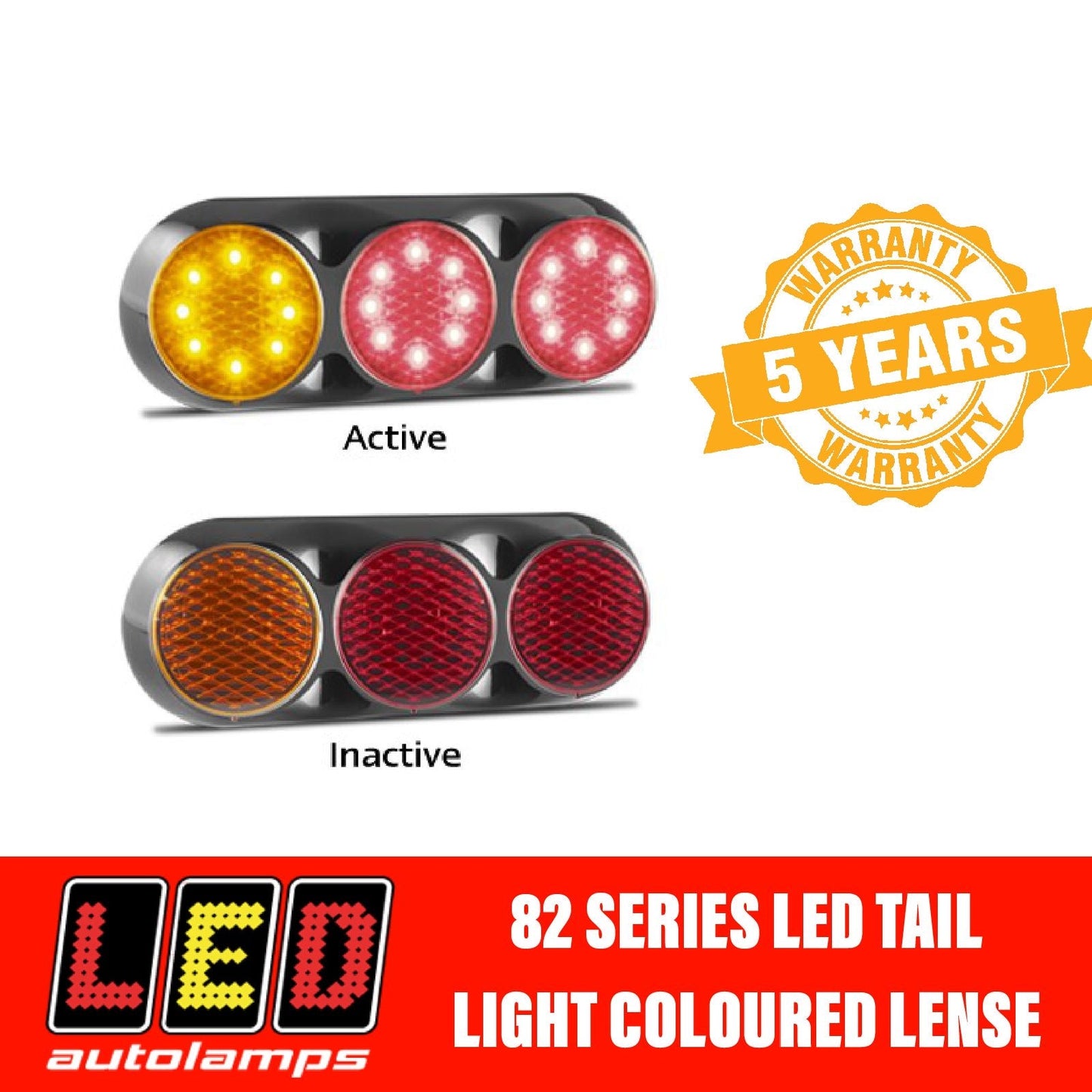

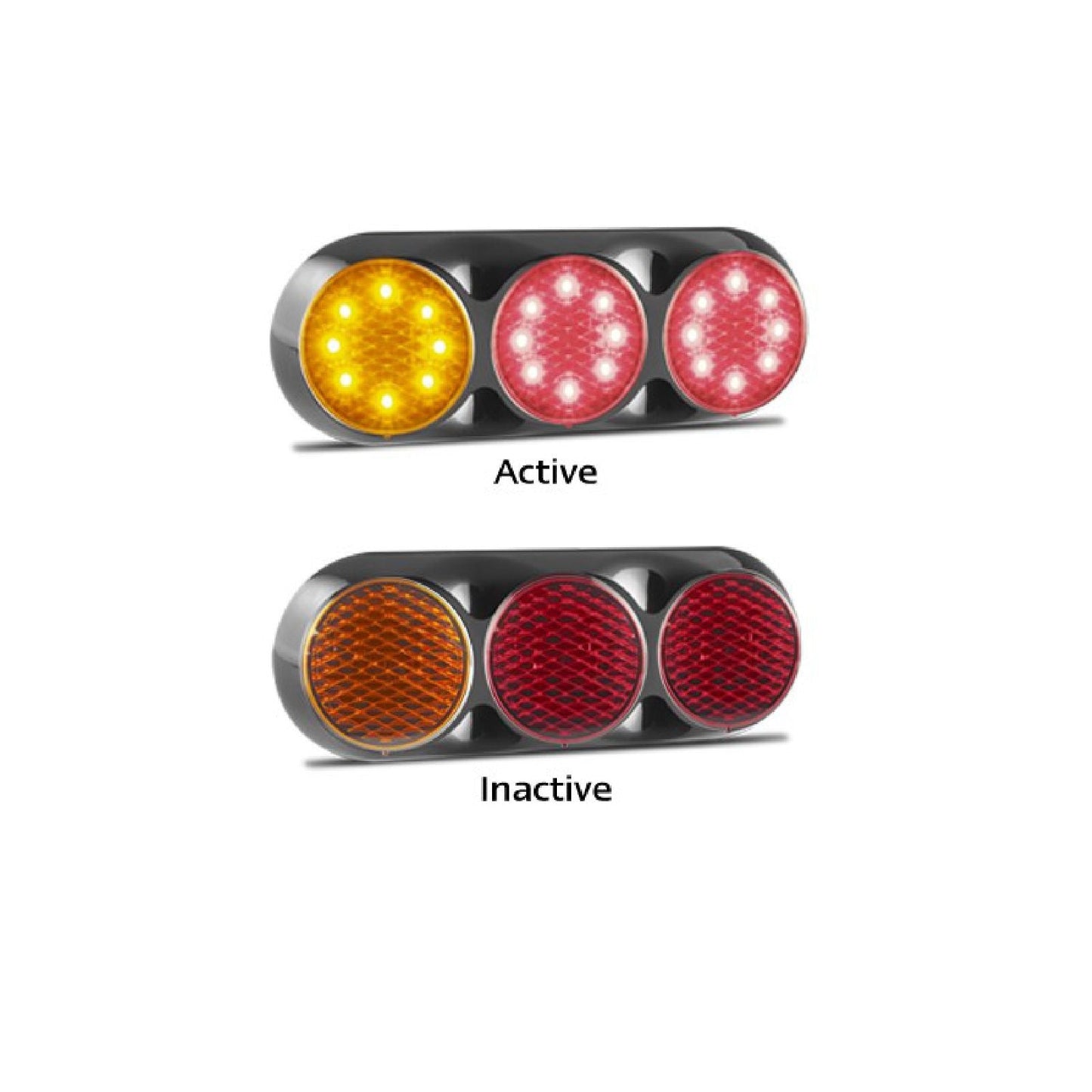

The 82 Series lamps are the newest and most flexible product line for unique lighting combinations. With over 12 individual parts allowing customers to pick and choose the lamp combination that suits their needs best. Mounting lamps as individual or as a combination is a breeze with the 3M mounting tape on the rear of the lamps.
Features / Specifications
Low Profile Design
Surface Mounting
ECE Australian Road Approved
IP67 Rated
12 Volt

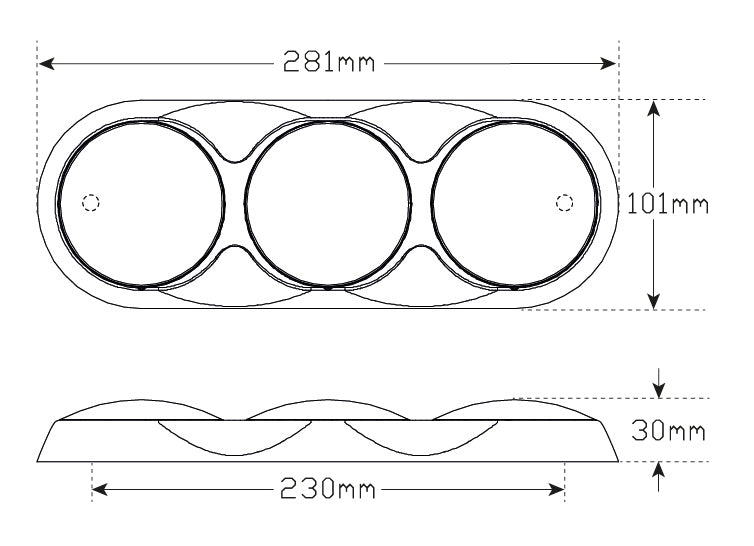

281mm x 101mm x 30mm
5 Year Warranty
Fitting Instructions
Horizontally mount bracket onto flat surface with screws provided, ensuring TOP markings are positioned above centre holes. Remove backing from 3M tape on back of lens, run wires through desired centre hole and align the locator nodule on edge of lens with the corresponding indentation on bracket. Apply firm hand pressure to ensure lamp adhesion. Repeat for each lens until all are installed securely. Refer to ADR 13/00 for mounting instructions.
