R&M Trailer Spares

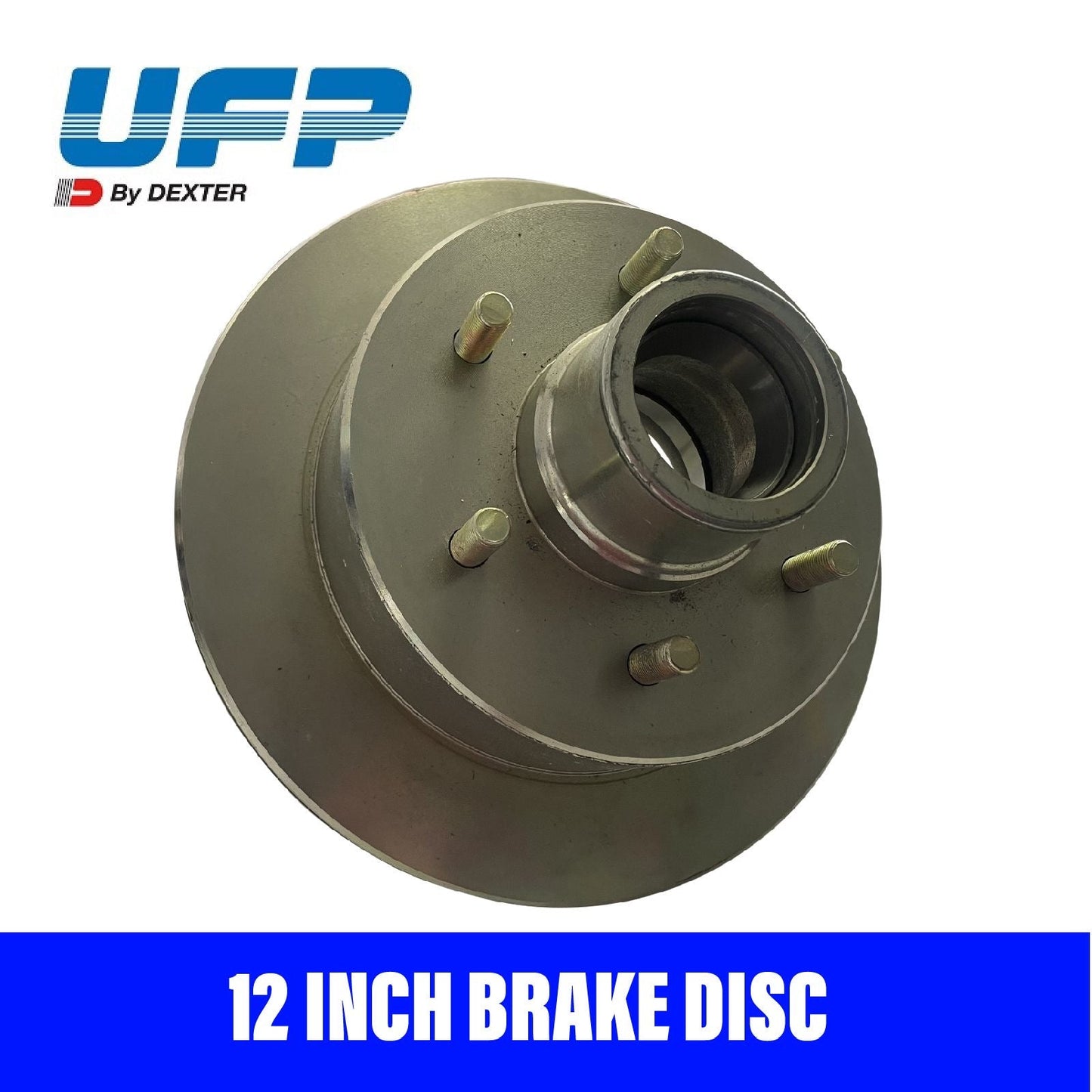

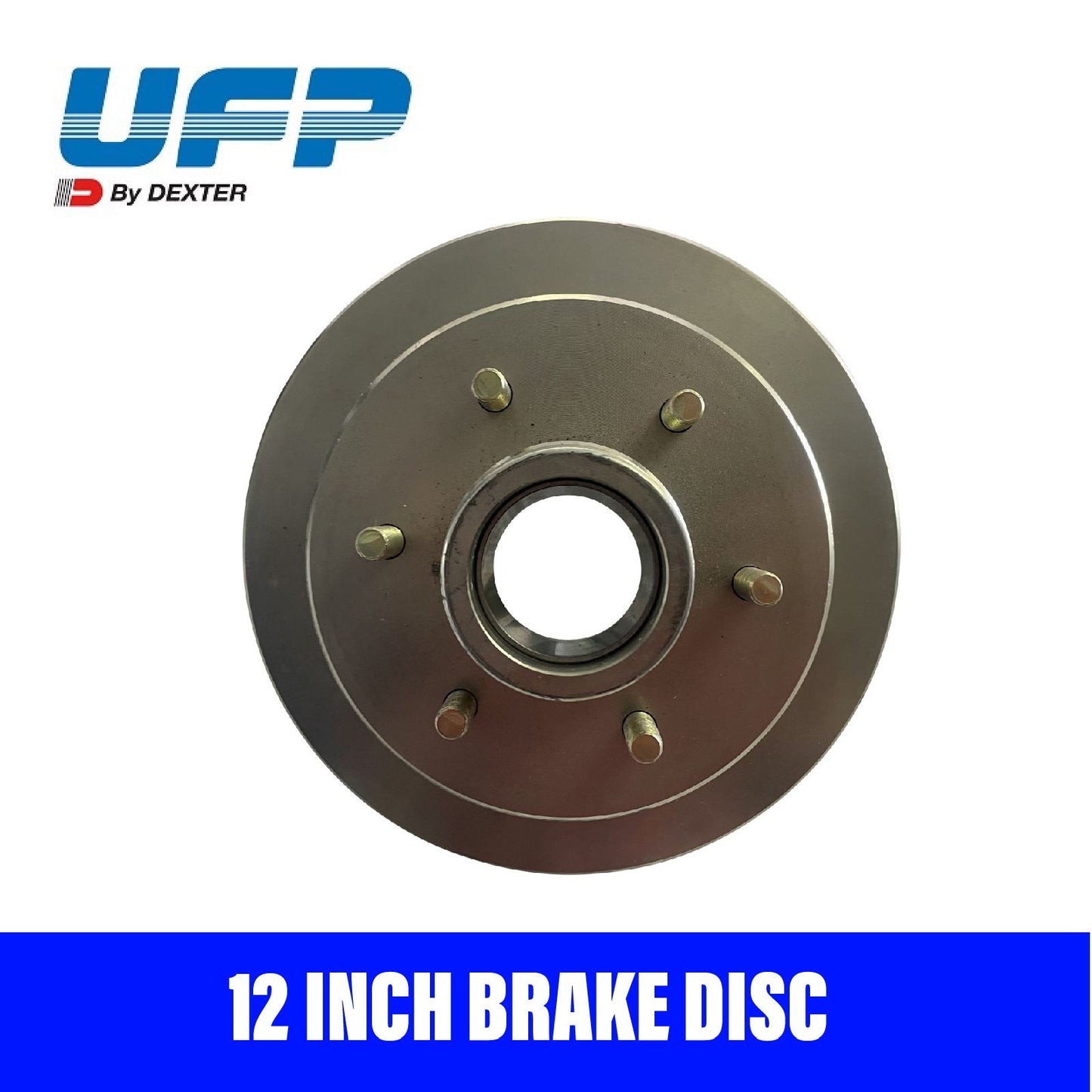

UFP 12 INCH Brake Disc 6 Stud
UFP 12 INCH Brake Disc 6 Stud
Regular price
$249.00 AUD
Regular price
Sale price
$249.00 AUD
Unit price
/
per
Couldn't load pickup availability
Share

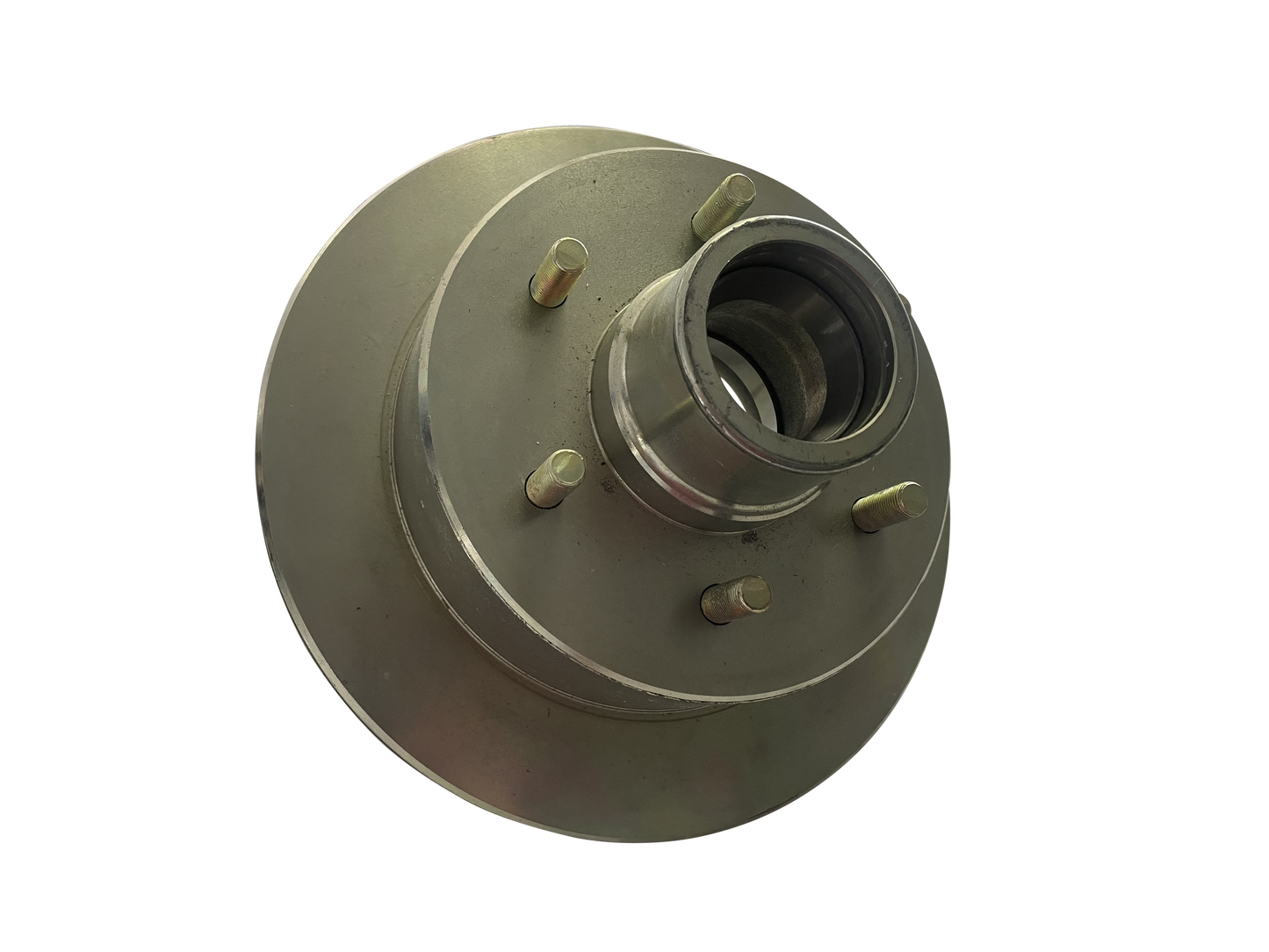

The UFP integral hub and rotor is constructed of cast iron and coated with a zinc plated finish to help protect against the elements, making it an ideal option for both salt water and fresh water use. It has a ventilated design to dissapate heat build up on the rotor to prevent rotor warping.
Product Features:
- Ventilated rotor for temperature regulation to reduce brake pad deterioration, excessive wear and warping
- UFP zinc plated finish to resist corrosion
- Pre-pressed inner and outer race
- Not side specific
- Pre-pressed studs
- Bearings, seal, and lug nuts sold separately
- Fits 5,200 lbs. - 6,000 lbs. capacity axles
Product Specifications:
- Rotor Diameter: 12"
- Bolt Pattern: 6 on 5 1/2"
- Inner Bearing (sold separately): 25580 (1 3/4")
- Inner Race (included): 25520
- Outer Bearing (sold separately): 67048 (1 3/4")
- Outer Race (included): 67010
- Wheel Size: 14" - 16"
- Axle Capacity: Up to 6,000 lbs.
- Seal: 3.37"
- Outer Bore: 2.32"
Dexter Marine Part Number: 08-441-05
