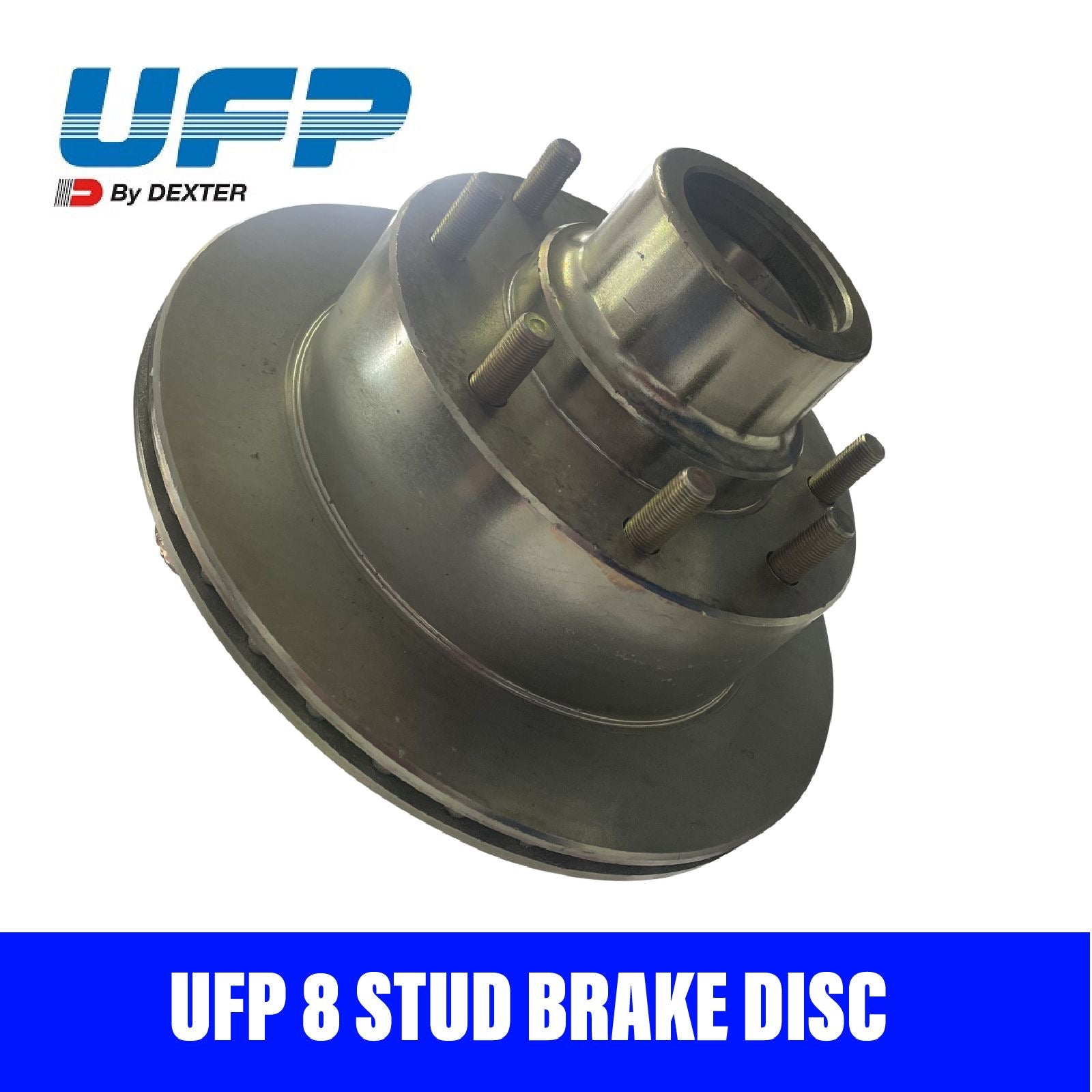

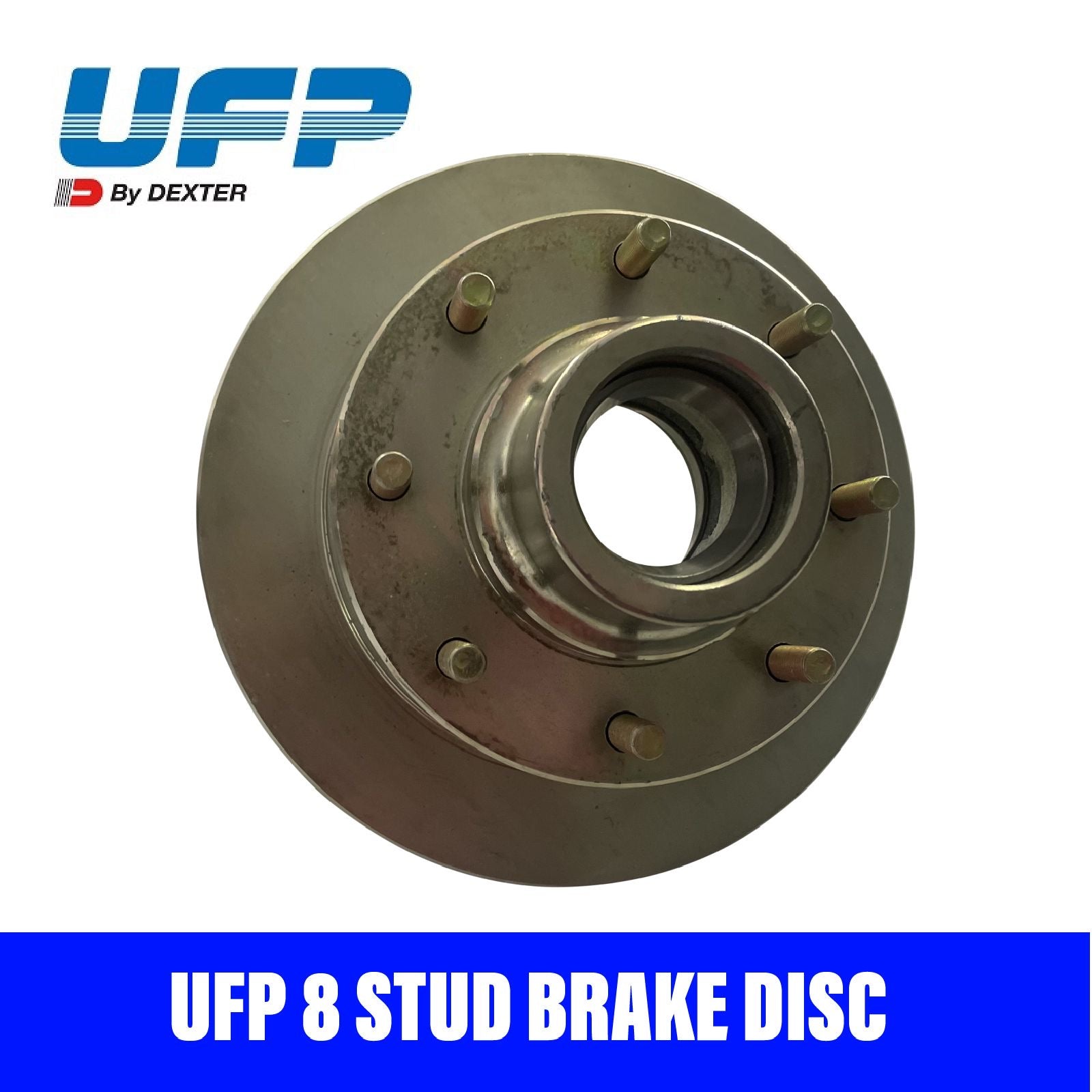

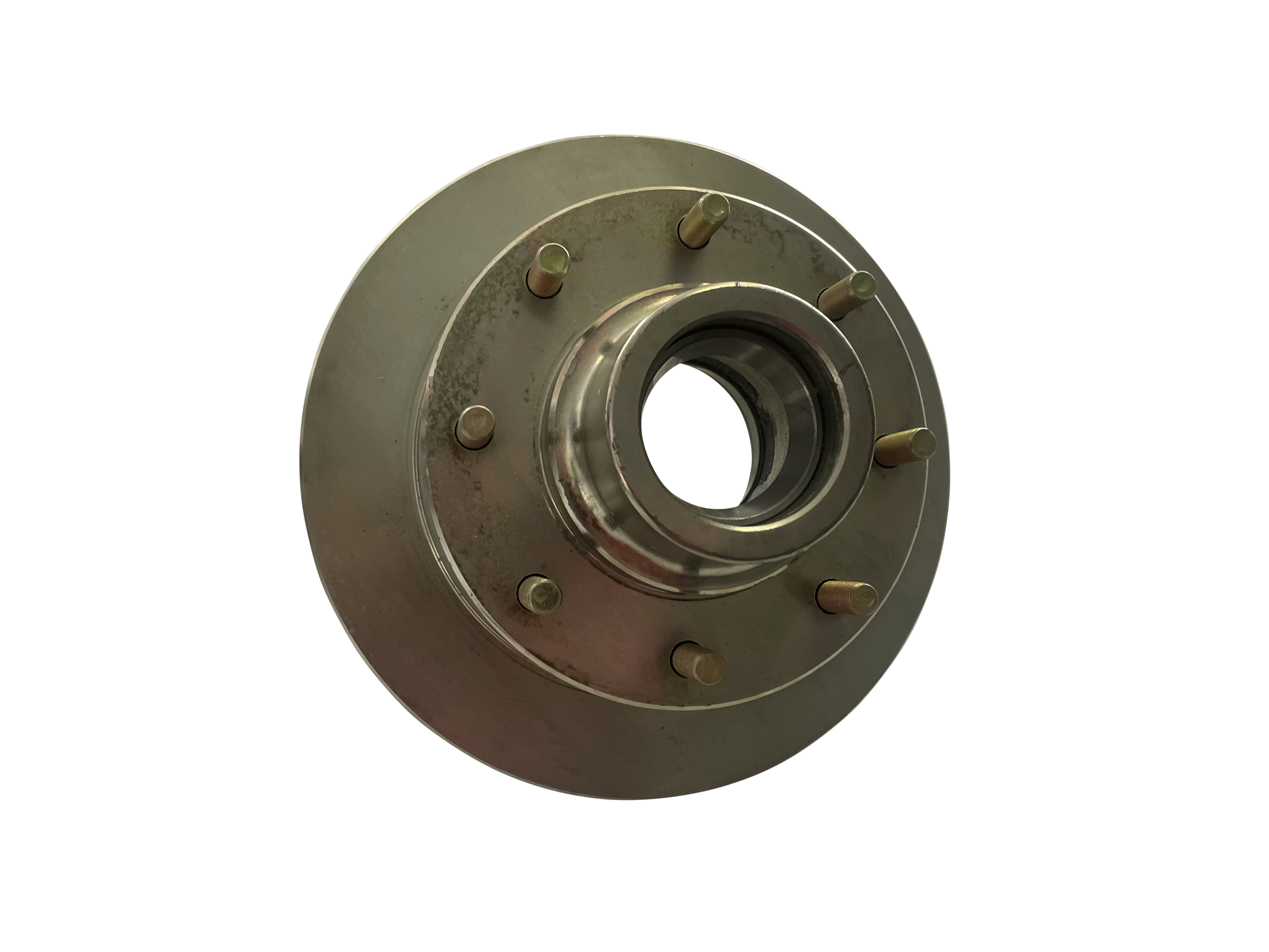

UFP 8 STUD 12 INCH Brake Disc

Name: UFP 8 STUD 12 INCH Brake Disc
Brand: R&M Trailer Spares
SKU: UFP8S12
Price: 399.0 AUD
Availability: InStock

$399.00 AUD

Sale Sold out

Product variants

Quantity

UFP DB-35 7K zinc disc brake rotor is vented to help shed heat and can be used with trailer axles that have up to a 7,000 lb. capacity. They will accept 15" to 16" wheels. (Lug nuts, bearings and seal are sold separately)

Spindle Size: 1-3/4" (25580) x 1-1/4" (14125) tapered
Diameter: 11-1/2"
Bolt circle: 8 on 6-1/2"
Inner Bearing: 1-3/4" (25580)
Inner Race: 25520 (Included)
Outer Bearing: 1-1/4" (14125)
Outer Race: 14276 (Included)
Seal: 3.38" x 2.13"
Minimum Thickness: 17mm
Rotor Thickness: 3/4"
